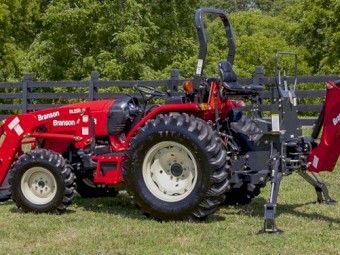

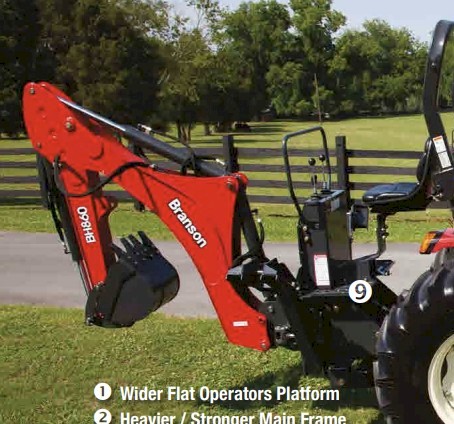

Branson BH860 Quick Fit Chassis Mount Backhoe - suits 20 and 25 Series Branson Tractors, some TYM and Mahindra also
$5,445.00 + GST ($5,989.50 Inc. GST)
Details
| Quantity | : | 1 Unit |
| Unit Price | : | $5,445.00 + GST ($5,989.50 Inc. GST) |
| Status | : | For Sale |
| Location | : | Brownsville, Illawarra, NSW/ACT |
| Category | : | Machinery & Equipment, Earthmoving - Attachments |
| Listing Date | : | 22/04/2022, 02:27pm |
Description
Branson backhoes are designed with the operator in mind. It is easy and quick to attach and detach them from the tractor. The backhoes are powered by the tractor's hydraulics, no need to struggle hooking up to an auxiliary hydraulic pump.
• BH860 Quick Fit Chassis Mount Backhoe suits 20 and 25 Series

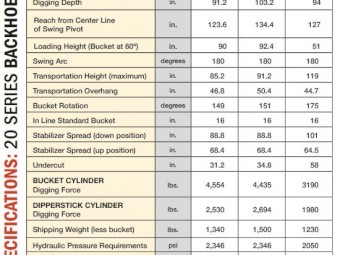

SPECIFICATIONS
Digging Depth 103.2 in
Reach from Center Line of Swing Pivot 134.4 in
Loading Height 92.4 in
Swing Arc 180 degrees
Transportation Height (maximum) 91.2 in
Transportation Overhang 50.4 in
Bucket Rotation 151 degrees
Bucket Standard 16 in
Stabilizer Spread (downward position) 88.8 in
Stabilizer Spread (upward position) 68.4 in
Undercut 34.8 in
Bucket Cylinder Digging Force 4,435 lbs
Dipperstick Cylinder Digging Force 2,694 lbs
Shipping Weight (less bucket) 1,500 lbs
Hydraulic Pressure Requirements 2,346 psi
Recommended HP Requirements 30-55 HP
(Tractor NOT included in sale)
• BH860 Quick Fit Chassis Mount Backhoe suits 20 and 25 Series
SPECIFICATIONS
Digging Depth 103.2 in
Reach from Center Line of Swing Pivot 134.4 in
Loading Height 92.4 in
Swing Arc 180 degrees
Transportation Height (maximum) 91.2 in
Transportation Overhang 50.4 in
Bucket Rotation 151 degrees
Bucket Standard 16 in
Stabilizer Spread (downward position) 88.8 in
Stabilizer Spread (upward position) 68.4 in
Undercut 34.8 in
Bucket Cylinder Digging Force 4,435 lbs
Dipperstick Cylinder Digging Force 2,694 lbs
Shipping Weight (less bucket) 1,500 lbs
Hydraulic Pressure Requirements 2,346 psi
Recommended HP Requirements 30-55 HP
(Tractor NOT included in sale)
