Pellet Mill

Condition: Used

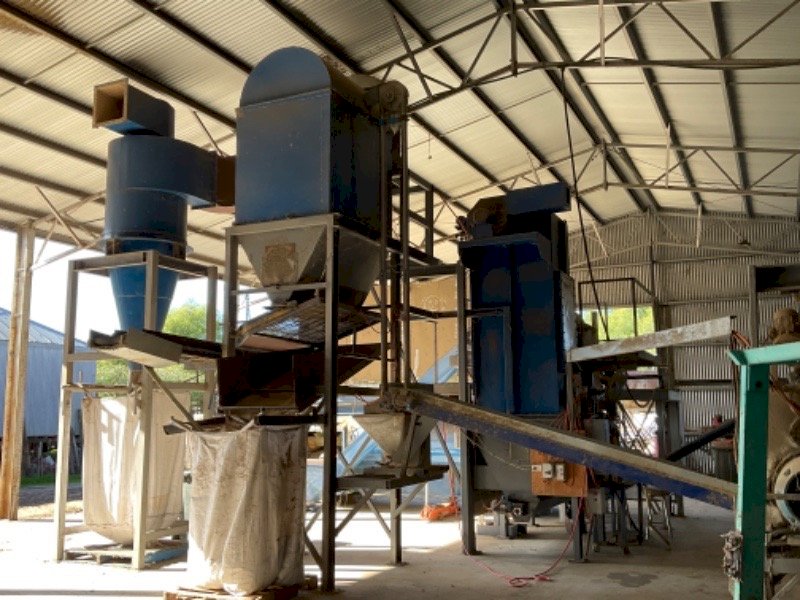

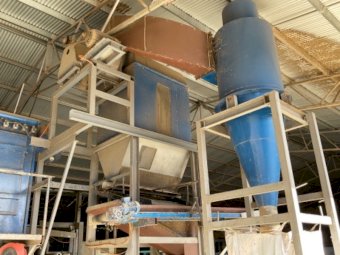

Complete operational Pellet Mill. Can produce 4 tonne of pellets per hour but averages about 3 tonne. Has a 22 cubic metre primary ribbon mixer with a variable drive 70hp electric motor. Complete with weighing scales. Feeding into a screw elevator which takes the product up to a 24 inch hammer mill with a 5mm screen driven by approx 70hp electric motor. The product is sucked through by a self-cleaning dust collector and then conveyed through screw augers to the secondary ribbon mixer. The secondary ribbon mixer feeds a stainless steel variable drive steamed auger feeding the California brand pellet mill with approx 60hp electric motor. The pellet mill press can have 120hp electric motor on it if required. It has 5mm and 9mm dies with a spare 5mm die (new). The produced pellets travel up a belt conveyor into a Floveyor elevator into a cooling tower. There is a stainless steel blower driven by approx 50hp electric mower.This process is to cool the pellets for storage. The stainless steel blower is connected to a cyclone dust separator.
What’s included:

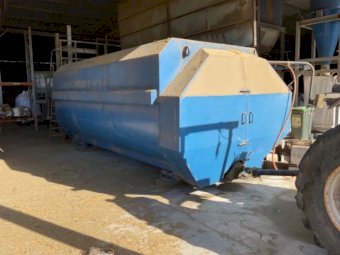

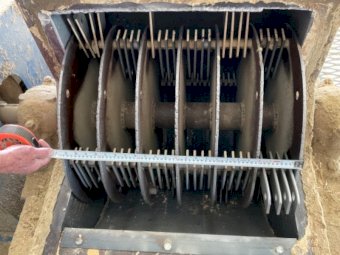

22 Cubic metre Ribbon Mixer driven by approx 75hp electric motor with a Toshiba VF-ASI variable drive controller, approx 7 metre Screw Conveyor with electric motor, 24 inch Hammermill with approx 70hp electric motor, 25 sock self-cleaning Dust Collector, V shaped Silo with discharge sealed transfer Auger with electric motor, approx 4 cubic metre Ribbon Mixer driven by approx 10hp electric motor, Stainless steel steam fed Auger with a variable electric motor, OP-LEO1 variable Controller, approx 10 inch throw Auger with electric motor, Rolls Steam Producer single phase electric motor, Water Separator, California Pellet Mill with approx 50hp electric motor with Danfos VLT Aqua drive variable controller, 3 x pellet dies ( 2 x 5mm and 1 x 9mm), Approx 5 metre Belt Conveyor with forward/reverse electric motor, approx 6 metre x 3 inch Floveyor Pellet conveyor, approx 8 cubic metre Cooling Tower with stainless steel Blower with 25hp electric motor, discharge 2 way Conveyor and a vibrating mesh Pellet Cleaner, 1.2 metre diameter Cyclone Dust Separator, twin cylinder Compressor and Tank Electric Controllers and Power Boxes, etc.
Price $355,000 but is somewhat negotiable.
