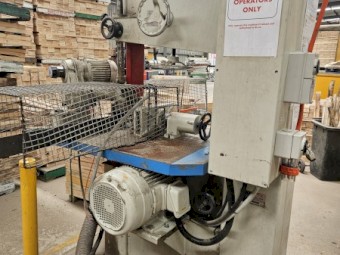

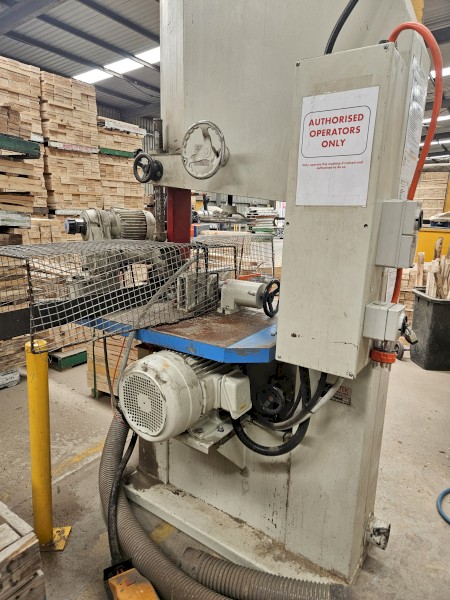

2014 Holytek HB-800 Vertical Band Resaw

Condition: Used

The Holytek HB-800 is a heavy-duty vertical band resaw engineered for high-speed, precise resawing tasks, making it suitable for timber merchants, joineries, and other light resawing applications.
ELECTRO TECH MACHINERY

Key features of the HB-800 include:

Powerful Motor: Equipped with a robust 20 HP motor, the HB-800 delivers substantial cutting power for efficient resawing operations.

Blade Specifications: Designed to accommodate a 4-inch wide blade with a length ranging from 216 to 217-1/8 inches, operating at a blade speed of 5,024 surface feet per minute (SFPM).


Construction: Features a high-caliber steel body welded as a single unit, providing a sturdy and vibration-free structure. The rectified cast iron table is equipped with rigid reinforcement, ensuring durability and stability during operation.


Feeding Options: Offers flexibility pneumatic/electric power feeders, allowing customization based on specific operational requirements.


Adjustable Feed Speed: The feed speed is adjustable, enabling operators to fine-tune performance according to material and cutting needs.


These features collectively make the Holytek HB-800 a reliable and efficient choice for professionals seeking precision in their resawing tasks.

Machine Specifications:

Motor Power: 20 HP
Wheel Diameter: 800 mm
Wheel Width: 50 mm
Blade Speed: 5,900 feet per minute (1,800 meters per minute)
Blade Length: 5,485 – 5,515 mm
Blade Width: 12 – 50 mm
Maximum Cutting Height: 610 mm
Maximum Cutting Width (Throat Capacity): 778 mm
Table Dimensions (L x W): 1,150 mm x 800 mm
Table Tilt: 0° to 30°
Dust Hood Diameter: 100 mm x 2
Machine Dimensions (L x W x H): 1,500 mm x 820 mm x 2,420 mm
Net Weight: 800 kg
Gross Weight: 1,015 kg
Additional Features:

Construction: High-Caliber steel body welded as a single unit for enhanced stability and reduced vibration.
Table: Rectified cast iron table with rigid reinforcement, featuring a groove to accommodate a miter gauge.
Blade Guides: Double ball bearing system for precise blade positioning.
Safety Features: Magnetic switch, doors with safety interlocks, brake pedal, and protective guards.
Blade Tensioning: Convenient adjustment mechanism with a steel tensioning wheel.

No further use

Video Link of same machine working

https://www.youtube.com/watch?v=8s70d_HG0uU
