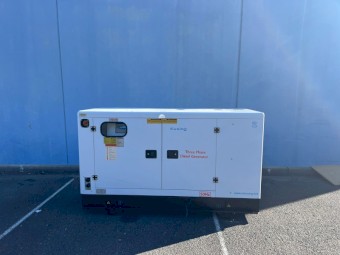

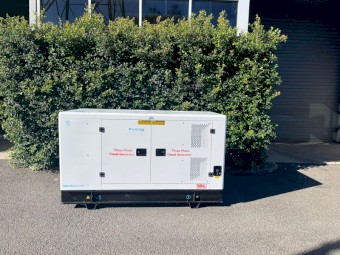

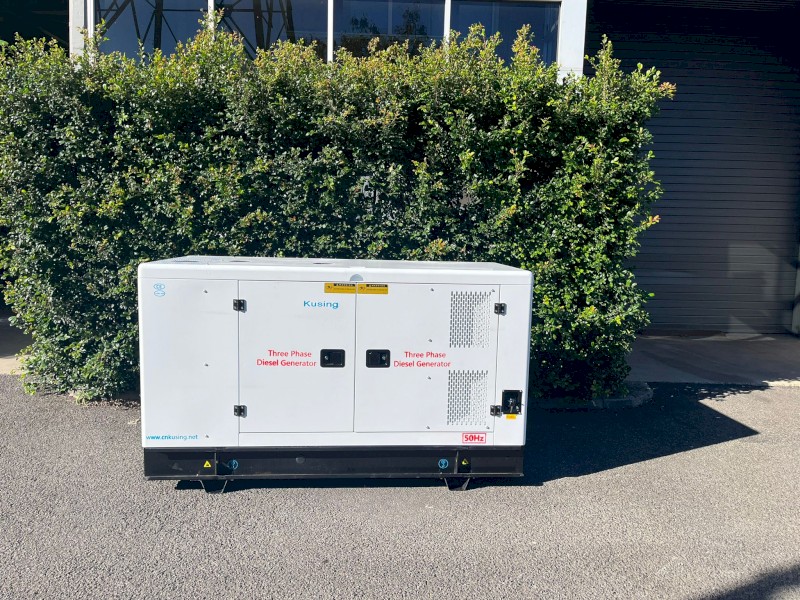

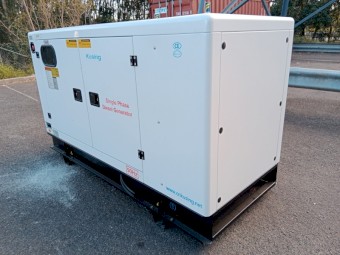

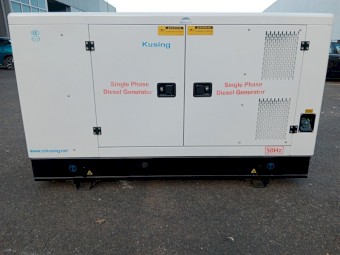

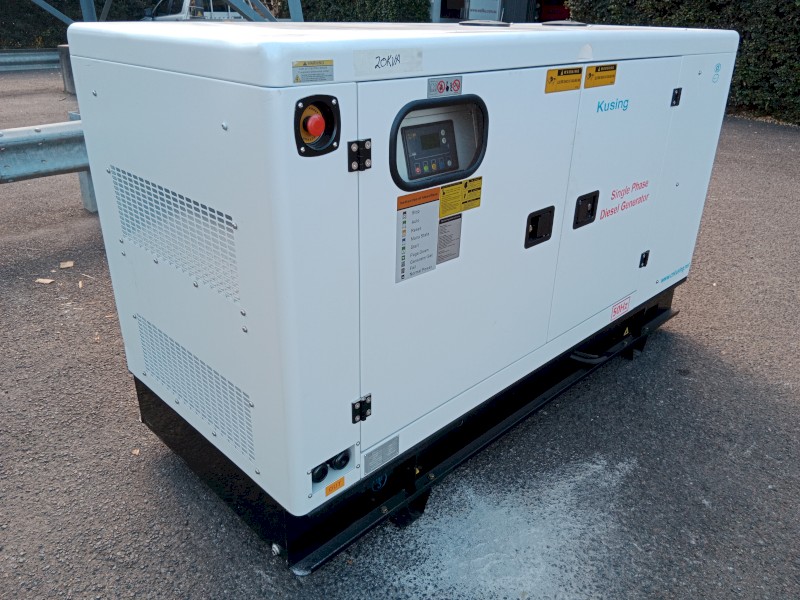

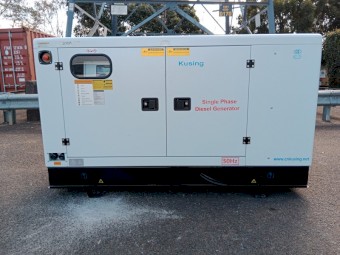

20KVA Silenced Diesel Generator 240V

Condition: Used

With expert presales advice and after sales service, customers have been satisfied worldwide by purchasing our top-quality products at very competitive prices.
Our self-owned factory currently produces industrial diesel generators on a mammoth scale, starting from 8KVA for domestic use, up to 2750KVA.
Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

Generator Model K30200
Prime Power 20KVA
Standby Power 22KVA
Rated Current 91 Amps
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire start connection installed for ATS (ATS add $500)
Fuel Tank Capacity 80 Litres
Noise Level 75dB @ 7m

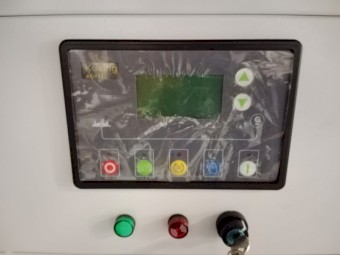

Controller Kusing AD6122
Main Breaker Switch 100A
Power Outlets N/A
Internal Protection IP23
Dimensions 2250L x 960W x 1250H mm
Weight 900kg

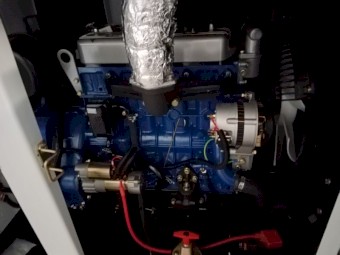

Engine OEM 4 Cylinder Inline Diesel
Bore 90mm
Stroke 100mm
Air Aspiration Natural
RPM 1500
Speed Governor Mechanical
Start System 12V
Fuel Consumption 4.4 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 6.5-7.5 Litres
Coolant Capacity 9-10 Litres
Alternator Make Kusing
Alternator Model KAL184C2 4 Pole Brushless
Voltage 240V
Phase Single phase
Frequency 50Hz @ 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance 1%
Insulation Class H

Main Features
• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations
• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features
• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Warranty
All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Shipping
For a shipping price to deliver to your location, please contact us.
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
