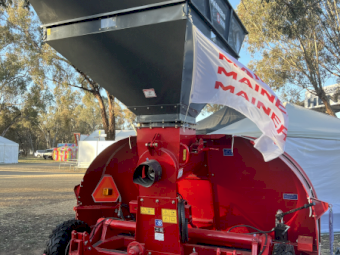

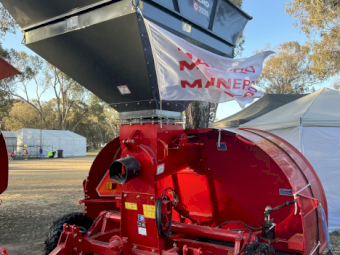

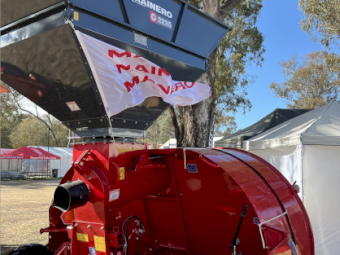

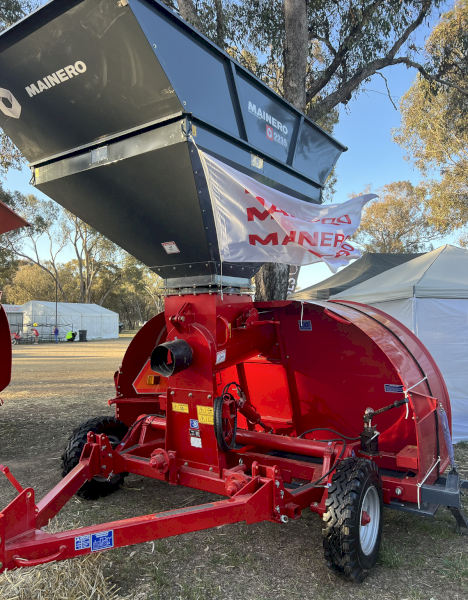

Mainero 2235 Grain Bagger

Condition: New

Make: Mainero

Model: 2235

Available now

Filling Tunnel
- Type: Oblong or flattened.
- Admitted bag size: 9 feet (2,74 m) – 60 and 75 meters
- Bag mounting: By means of retractable support with winch and hanger.
- Materials to be bagged All kinds of dry grains.
- Transport position Identical to work. Does not require additional elements Optional: set of wheel hubs, tongue and lights for end transport.
- Working tongue Foldable for end or truck transport.
Tractor requirement
- Minimum power: 45 CV (din)
- Power take off: 540 RPM
- Hydraulic system: One double-acting hydraulic cylinder outlet.
- Drive Protected PTO shaft.
- Safety system: Torque limiter with shear bolt.
- Brake system Disk brake on both wheels. Adjustable braking by manual operating pump. Indicating manometer.
- Wheel axle Adjustable by agricultural type hydraulic cylinder (3” or 3½” x 8”).
- Feed High capacity auger (more than 250 ton/hour).
- Auger diameter: 450 mm
- Bag retention With encircling elastic harness.
- Tires 7.00 – 15 – 8 ply – quantity 2
- Total weight 1250 Kgs

Loader accessory for nozzle
- Auger diameter 260 mm
- Drive: By hydraulic motor driven from the auxiliary hydraulic distributor of the tractor. Bypass valve let stop the loader drive without having to climb the tractor.
- Required hydraulic system Flow: 80 l/min. – pressure: 120 kg/cm3. Two outputs for double-acting hydraulic cylinders
- Transport capacity 60 to 80 ton/hour*
- Discharge hopper Mobile to facilitate the approach of the truck and the transport of the accessory.
- Wheel axle Adjustable position by manual registration (worktransport)
- Tires 6.40 x 13 – 4ply – quantity 2
- Total weight 380 Kg
Loader accessory for dump trucks
- Auger Diameter 260 mm
- Drive By hydraulic motor driven from the auxiliary hydraulic distributor of the tractor. Bypass valve let stop the charger drive without having to climb the tractor.
- Required hydraulic system Flow: 80 l/min. – pressure: 120 kg/cm3. Two outputs for double-acting hydraulic cylinders.
- Transport capacity 60 to 80 ton/hour*
- Reception or Charge hopper 2,6 m wide. Foot support with rotating wheel that facilitates its hook for transport.
- Wheel axle Adjustable position by manual registration (worktransport)
- Tires 6.40 x 13 – 4 ply – quantity 2
- Total weight 530 Kg
