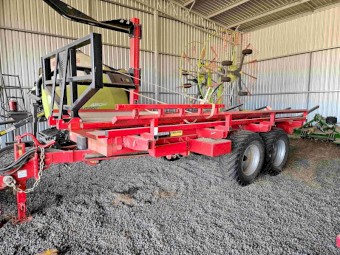

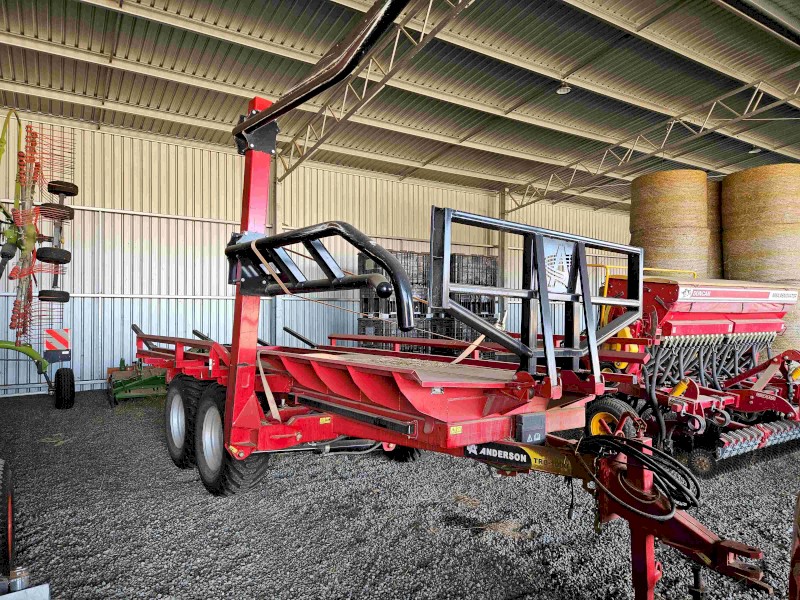

2019 Anderson TRB-1000 Round Bale accumulator/collector

Condition: Used

Make: Anderson

Excellent Condition - Best bit of kit I ever purchased, picks up 10 bales in minutes.

Specifications
Max Round bale diameter Up to 6 ft (1,8 m)
Bale types - Baleage/dry hay/straw
Tandem axle, Safety chain, Self-loading arm design
Tires 550/45-22,5
Tractor minimum hydraulic flow 2500 psi (172 bar)
HP requirements 115 HP
Double hydraulic connections required 3 Controls (Tractor’s hydraulic circuit)
Width – A 8 ft 4 po (2,55 m)
Overall width (inlcuding loading arm) 8 ft 4 po (2,55 m)
Height – B 7 ft 10 po (2,39 m)
Overall height (inlcuding loading arm) 11 ft 11 po (3,64 m)
Bed height - E 4 ft 9 po (1,44 m)
Overall length – D 30 ft 5 po (9,27 m)
Overall weight 11 025 lb (5000 kg)
Empty Weight on tow bar*** 1820 lb (825 kg)

Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) 10
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) 10
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) 10
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) 8
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m) 8
Loading arm lifting capacity 2500 lb (1135 kg)
Total weight including load 42 000 lb (19 000 kg)
