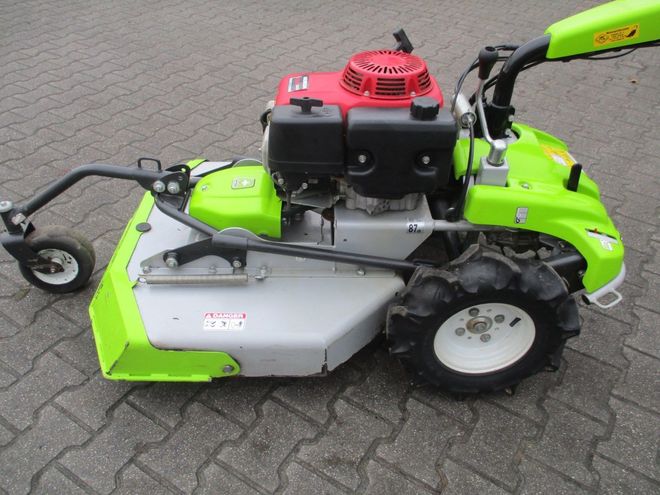

GRILLO CL 75 Scrub mower hydrostatic meadow mower year 2013

GRILLO meadow mower CL 75

The articulated hydrostatic meadow mower in all situations ......

The handiness of the CL 75 makes the cutting of tall grass and shrubs easy and efficient.

Uneven floors, steep slopes and obstacles of any kind are no problem for the Grillo CL 75.

The perfect weight distribution and the special profiles of the agricultural tires guarantee traction under all conditions.

The cutting deck with a knife and swinging ends, produces a good finish even in the cut of turf.

This makes this machine an ideal instrument for professional and private lawn care as well as for mowing in orchards and olive groves.

The cutting deck of the CL 75 is mounted on the front, so that the cut is also guaranteed under low branches and shrubs.

High grass, scrub and shrubs are led into the mower deck and shredded by the knife with the (impact-resistant) vibrating ends made of special steel.

The crushed material is discharged by rear ejection.

The front flap of the mower deck can be automatically raised if necessary, thus favoring the entrance of the tall shrub into the cutting chamber without it being crushed.

This significantly increases the efficiency of the editing system.

The cutting deck of the CL 75 is completely made of steel.

The cutting height can be easily adjusted from min. 50 mm to 150 mm.

The setting is continuous with the aid of an easy-to-use handwheel.

The mower deck is held parallel to the ground in all positions.

Here's the technology at a glance:

Model: GRILLO CL 75

Engine: Honda GXV 340 OHV

Starter: recoil starter

Supply: gasoline

Displacement: 337 cc, 1 cylinder

Power: 6.6 KW / hp 8.9

Fuel capacity: 2.1 l

Transmission: hydrostatic transmission

Drive: 2 - wheel drive

Mower: rear discharge with tilting opening in front

Cut configuration: rotating with a knife, with 2 movable and shockproof knives

Cutting width: 750 mm

Cutting height: from 50 mm to 150 mm continuously

Blade revolution speed: 74 m / s

Differential lock: Manually adjustable differential lock

Speed: stepless adjustment from 0 to 6 km / h, reverse from 0 to 3.5 km / h

Drive wheels: Tractor Wheels with 4 inserts 4.00 - 8

Front wheel: 8 x 3.00- 4 wheels with puncture protection treatment

Parking brake: Activatable by lever

Steering handlebar: Fast height and lateral adjustment of the handlebar

Cutting capacity per hour: 2,500 m² 2 / h

Length: 2150 mm

British: 845 mm

Height: 1050 mm

Weight: 140 kg

Year of construction: 2013

Article No .: GR-8Y 17 R
