$280,000.00 + GST ($308,000.00 Inc. GST)
- Sold
Details
| Quantity | : | 1 Unit |
| Unit Price | : | $280,000.00 + GST ($308,000.00 Inc. GST) |
| Status | : | For Sale |
| Location | : | Winchelsea, Central, VIC |
| Category | : | Machinery & Equipment, Tillage & Seeding - Air Seeders |
| Listing Date | : | 02/02/2023, 06:00pm |
| Date Sold | : | 23/08/2023, 08:36pm |
Description

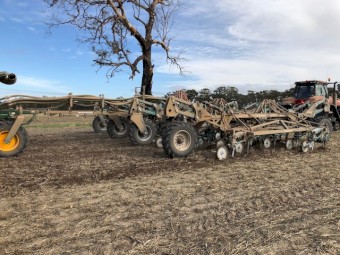

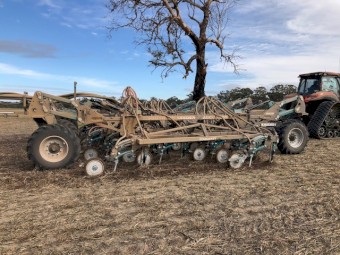

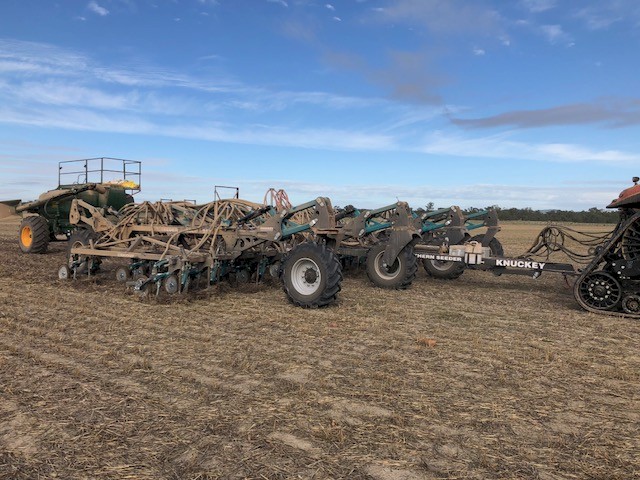

12m Knuckey Accu-Sow seeder. High Clearance Bridge Frame with wheels set on 3m. 36 Hydraulic Tines with Zero Til shanks set on 13 1/3 inch spacings. Knuckey MAW2 Sowing Systems set up for double shoot with large 18inch diameter press wheels with maintenance free hubs. Always shedded.
This bar includes all of our standard award winning features and will be available for this season.
• 6 Rung Frame allowing the best tine layout on the market for optimal trashflow
• High Capacity 10 Stud hub and stub axle system on main frame and wing wheel systems
• Wheels located outside the toolbar to maximise trashflow and eliminate problem areas around wheels along with optimising tine layout often compromised by wheels in frame
• High 1300mm Underframe Clearance for ease of maintenance
• 100 x 100 x 9 RHS used for toolbar frame with strategic gusseting to ensure a long life of toolbar in the toughest conditions be it wet or dry
• Cutting edge use of Strenx 700 Steel plating for optimal strength while drastically limiting critical weight on wheel castor frames and allow drop wing fold design
• Frame design allowing for the fitment of coulters across the front of toolbar. A rare ability for Bridge frame and floating hitch toolbars
• Class leading double spherical bearing and thrust bearing castor design to accommodate high axial loads, the smoothest casting and eliminating speed wobble in road transport
• X4 Stands for use when machine out of season and safely stored in shed
• Drop Wing Fold design allowing for a decrease of 200mm transport height and 400mm transport width
• Optional Hydraulic Jack for easy drawbar lift
• Heavy Duty purpose built toolbox with greaseable hinges fitted to drawbar for easy access to spare parts
20L Handwash tank fitted to drawbar
Key Elements of the MAW2 Sowing System
• Single acting Hydraulic Tyne Cylinder fitted with return dampener to ensure soft return when tine breaks out on an immovable object
• Rod encased in Cylinder unless breaking out ensuring exposure to the elements is minimal to greatly increasing the lifespan of hydraulic seals and shafts
• Standard breakout of 700lb with optional 1000lb breakout
• Twin piston Accumulator System for better tine control and variable tine pressure
• Heavy Duty, hardwearing fertiliser tube with ample hardfacing mounted to front tine for double shooting. Designed to ensure no blocking in sticky conditions
• Specifically designed maintenance free pivot points fitted with sealed bearings for longlife on sowing system parallelogram arms rather than bushing
• Variable Sowing Tube options to best suit your conditions and program requirements accompanied by EPDM rubber dampening system to enhance breakout in rocky conditions
• Large 18inch press wheel to enable far greater sowing system clearance, mud clearing capacity and less rotations for longer life
• Heavy Duty Press Wheel Scraper System to ensure consistent shape of press wheel for perfect seed placement
• Optional fully sealed Maintenance free hub to ensure long life in the harshest conditions
• Simple ‘pin-up’ ability to lift sowing system out of the way if condition are so bad you don’t what them in the ground or for tillage use
Critical Adjustments and endless flexibility on the MAW 2 Sowing System
• Adjustable Sowing Tube starting point through 9 holes with 15mm increments
• Further quick and easy single pin sowing depth adjustment of 60mm through 10 holes with 6mm adjustments for each ensuring you have the seed exactly where you want it
• Simple and effective Spring packing Pressure easily adjusted in 5kg increments from 35kg to 85kg to suit any conditions
• Primary Ripping Tine height adjustment of 200mm plus heightening or lowering the toolbar further to a minimum of 650mm (frame to ground) and maximum of 850mm working depth (400mm total adjustment of ripping tine)
• 0 to 880lb Primary tine pressure for 0 breakout pressure or high pressure for deep cultivating in the tightest of conditions
• 450mm up and down travel of sowing system ensuring your sowing system can follow the most uneven terrain
• The bottom of main sowing system body works at 400mm from the ground aided by the large diameter press wheel this ensures maximum trashflow
• A huge 680mm clearance between the primary ripping tine and sowing tube enabling the greatest trash flow on the market, soil flow to have time to flow around the tine closing the furrow with tilth before the sowing tube places your seed at the precise depth you want it
• The clearance along with the two tines working independently ensures the front tine can breakout to its full extent without interrupting your seed depth and greatly reducing wear through parallelogram pivot points due to no unnecessary movement by reacting to the front tine
Price +gst
This bar includes all of our standard award winning features and will be available for this season.
• 6 Rung Frame allowing the best tine layout on the market for optimal trashflow
• High Capacity 10 Stud hub and stub axle system on main frame and wing wheel systems
• Wheels located outside the toolbar to maximise trashflow and eliminate problem areas around wheels along with optimising tine layout often compromised by wheels in frame
• High 1300mm Underframe Clearance for ease of maintenance
• 100 x 100 x 9 RHS used for toolbar frame with strategic gusseting to ensure a long life of toolbar in the toughest conditions be it wet or dry
• Cutting edge use of Strenx 700 Steel plating for optimal strength while drastically limiting critical weight on wheel castor frames and allow drop wing fold design
• Frame design allowing for the fitment of coulters across the front of toolbar. A rare ability for Bridge frame and floating hitch toolbars
• Class leading double spherical bearing and thrust bearing castor design to accommodate high axial loads, the smoothest casting and eliminating speed wobble in road transport
• X4 Stands for use when machine out of season and safely stored in shed
• Drop Wing Fold design allowing for a decrease of 200mm transport height and 400mm transport width
• Optional Hydraulic Jack for easy drawbar lift
• Heavy Duty purpose built toolbox with greaseable hinges fitted to drawbar for easy access to spare parts
20L Handwash tank fitted to drawbar
Key Elements of the MAW2 Sowing System
• Single acting Hydraulic Tyne Cylinder fitted with return dampener to ensure soft return when tine breaks out on an immovable object
• Rod encased in Cylinder unless breaking out ensuring exposure to the elements is minimal to greatly increasing the lifespan of hydraulic seals and shafts
• Standard breakout of 700lb with optional 1000lb breakout
• Twin piston Accumulator System for better tine control and variable tine pressure
• Heavy Duty, hardwearing fertiliser tube with ample hardfacing mounted to front tine for double shooting. Designed to ensure no blocking in sticky conditions
• Specifically designed maintenance free pivot points fitted with sealed bearings for longlife on sowing system parallelogram arms rather than bushing
• Variable Sowing Tube options to best suit your conditions and program requirements accompanied by EPDM rubber dampening system to enhance breakout in rocky conditions
• Large 18inch press wheel to enable far greater sowing system clearance, mud clearing capacity and less rotations for longer life
• Heavy Duty Press Wheel Scraper System to ensure consistent shape of press wheel for perfect seed placement
• Optional fully sealed Maintenance free hub to ensure long life in the harshest conditions
• Simple ‘pin-up’ ability to lift sowing system out of the way if condition are so bad you don’t what them in the ground or for tillage use
Critical Adjustments and endless flexibility on the MAW 2 Sowing System
• Adjustable Sowing Tube starting point through 9 holes with 15mm increments
• Further quick and easy single pin sowing depth adjustment of 60mm through 10 holes with 6mm adjustments for each ensuring you have the seed exactly where you want it
• Simple and effective Spring packing Pressure easily adjusted in 5kg increments from 35kg to 85kg to suit any conditions
• Primary Ripping Tine height adjustment of 200mm plus heightening or lowering the toolbar further to a minimum of 650mm (frame to ground) and maximum of 850mm working depth (400mm total adjustment of ripping tine)
• 0 to 880lb Primary tine pressure for 0 breakout pressure or high pressure for deep cultivating in the tightest of conditions
• 450mm up and down travel of sowing system ensuring your sowing system can follow the most uneven terrain
• The bottom of main sowing system body works at 400mm from the ground aided by the large diameter press wheel this ensures maximum trashflow
• A huge 680mm clearance between the primary ripping tine and sowing tube enabling the greatest trash flow on the market, soil flow to have time to flow around the tine closing the furrow with tilth before the sowing tube places your seed at the precise depth you want it
• The clearance along with the two tines working independently ensures the front tine can breakout to its full extent without interrupting your seed depth and greatly reducing wear through parallelogram pivot points due to no unnecessary movement by reacting to the front tine
Price +gst
