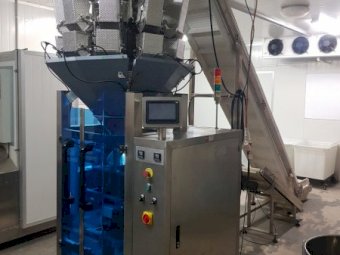

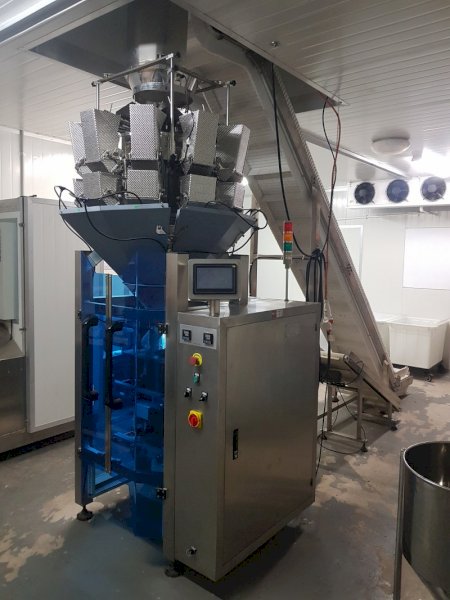

Bestar BSTV-420 Automatic Weighing & Packing System

Condition: Used

Make: Bestar

Excellent condition,
Ex-showroom demonstrator.
Automatic system includes product weighing, bag making, bag filling, bag sealing and date/batch printing.

Model BSTV-420AZ-1
Film Width Max 420mm
Bag Length 80-300mm
Bag width 60-200mm
Bag thickness 10-60mm
Film Thickness 0.04-0.08mm
Packing Speed 10-50 bags/min
Filling range 8-200g (salad)
Film Material BOPP/CPP, PET/AL/PE (heat sealable)

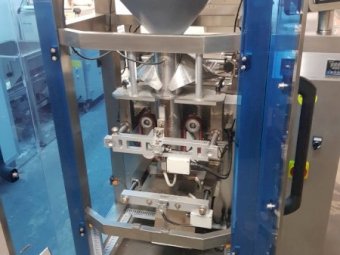

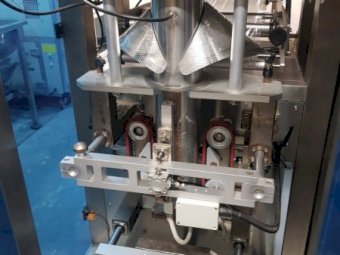

Automatic Filling & Packing
· PLC full computer control system, man-machine interface, large display, touch screen operation is easy and simple.
· Servo film pulling system, horizontal sealing servo control, accurate positioning and reliable performance
· Automatic feeding, bag-making, filling, date printing, counting, finished product output process.

Automatic Multi-head Wigher
High speed and high precision, instantaneously selects the best weight combination through computer calculation of weights in 10 heads.
· High-precision digital weighing transducer for accurate measuring.
· IP65 level waterproof dustproof type design.
· All food contact parts Grade 304 stainless steel
· Seal design prevents the material accumulation and convenient for cleaning.

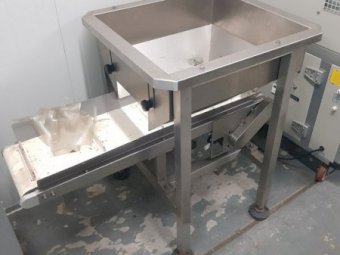

Inclined Conveyor & Virbratory Feeder
The inclined conveyor automatically transports the produce up to the weighing and packing machine.
The produce is loaded onto the inclined conveyor with the included vibratory feeder.

· Lifting Height: 3M
· Lifting Speed: 0-17m/min
· Lifting quantity 6m3/h
· Power: 750w
· Voltage: 413V, 50Hz.

Output Conveyor
The output conveyor automatically transports the finished bags to the carton packing area
· Lifting Height： 1.5-2.5m
· Speed： 1m³/h
· Transport speed: 30m/min
· Dimension: 2110 × 340 × 500mm
· Power Source: 240V 50Hz
