$5,000.00 + GST ($5,500.00 Inc. GST)
- Sold
Details
| Quantity | : | 1 Unit |
| Unit Price | : | $5,000.00 + GST ($5,500.00 Inc. GST) |
| Status | : | For Sale |
| Location | : | Moranding, North Central, VIC |
| Category | : | Vehicles & Motorbikes, ATV |
| Listing Date | : | 01/05/2023, 12:50pm |
| Date Sold | : | 05/05/2023, 04:37pm |
Description
Selling as no longer required.

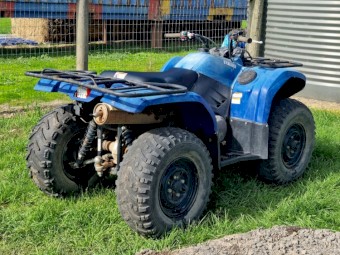

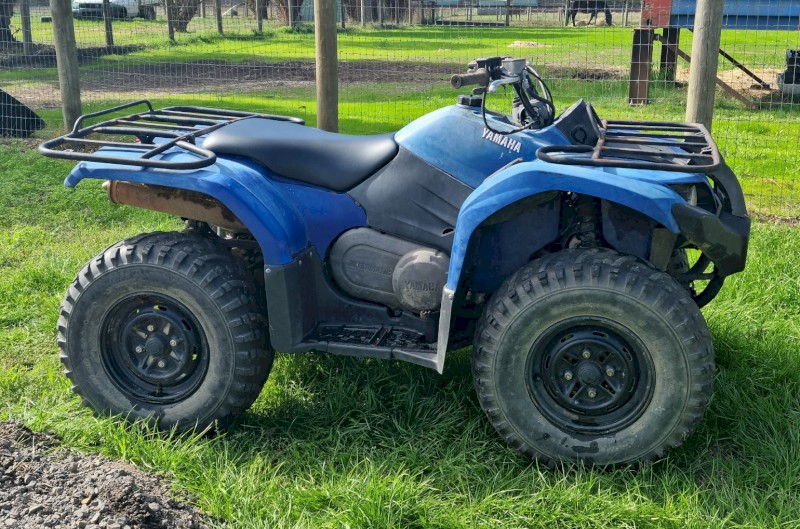

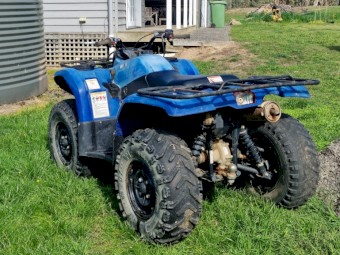

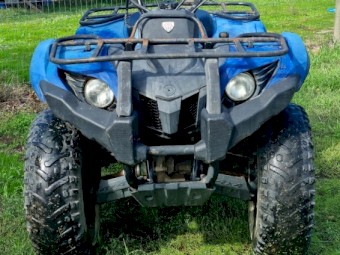

2013 ATV, Yamaha Grizzly YFM 450.
Very good used condition.
New seat.
Recently serviced.
BIKE
Bike - ATV Farm CVT 1sp 450cc (Mar)
Series - Grizzly
Model Code - YFM450FA D
Colours - Steel Blue
Price - $12,599, Price Guide (Excl. Govt. Charges)
Transmission - CVT
Number of Gears - 1
Fuel Type - Petrol
Release Year - 2013
Engine Capacity - 421 cc
Configuration - 421cc, 4-stroke, Liquid cooled, 4-Valve, SOHC, 1-cyl
Release Date - March 2013
Country of Origin - JAPAN
ENGINE
Engine Description - 450
Engine Config - Vertical
Engine Capacity - 421 cc
Engine Type - Piston
Engine Stroke - 4
Bore - 84.5 mm
Stroke - 75.0 mm
Cam Type - SOHC (Single Over Head Cam)
Cylinders - 1
Valves Per Cylinder - 4
Compression Ratio - 10.0:1
Induction System - Aspirated
Carburettor(s) - 1
Carburettor - Mikuni BSR33/1; Semi-oval slide
Throttle Bore - 33mm
Cooling - Liquid
Lubrication - Wet Sump
Exhaust Description - Stainless steel muffler & header
START
Ignition - CDI (Capacitive Discharge Ignition)
Ignition Description - DC-CDI
Starter - Electric
ELECTRICS
Engine Voltage - 12 Volt
Charging Method - Engine
FUEL & EMISSIONS
Fuel Type - Petrol
Recommended RON - 95
Fuel Tank Capacity - 15.0 L
TRANSMISSION
Transmission Description - Ultramatic, High/Low/Neutral/Reverse/Park
Primary Drive - V-Belt
Drive Type - Shaft
Final Drive Ratio - Selectable 2WD/4WD; Diff locks; H/L/N/R/P
Driven Wheels - 2WD/4WD Selectable
Gear Type - CVT
Gear Number - 1
Reverse Gear - Standard
Clutch Type - Ultramatic
CHASSIS & SUSPENSION
Front Suspension - Independent double wishbone, 5 position preload adjustment shock absorbers
Front Suspension Travel - 160.0 mm
Rear Suspension - Independent double wishbone, 5 position preload adjustment
Rear Suspension Travel - 180.0 mm
BRAKES
Front Brake Description - Dual discs, Hydraulic operation
Rear Brake Description - Sealed oil-bathed multi disc
ABS - Not Available
Engine Braking System - Yes
WHEELS & TYRES
Wheel Size Front - 12"
Wheel Size Rear - 12"
Rear Tyre - 25 x 10-12" All Terrain
Front Tyre - 25 x 8-12" All Terrain
DIMENSIONS & WEIGHTS
Length - 1991 mm
Width - 1093 mm
Height - 1120 mm
Wheelbase - 1233 mm
Ground Clearance - 275.0 mm
Wet / Operational Weight - 281.00 kg
Seating Capacity - 1
2013 ATV, Yamaha Grizzly YFM 450.
Very good used condition.
New seat.
Recently serviced.
BIKE
Bike - ATV Farm CVT 1sp 450cc (Mar)
Series - Grizzly
Model Code - YFM450FA D
Colours - Steel Blue
Price - $12,599, Price Guide (Excl. Govt. Charges)
Transmission - CVT
Number of Gears - 1
Fuel Type - Petrol
Release Year - 2013
Engine Capacity - 421 cc
Configuration - 421cc, 4-stroke, Liquid cooled, 4-Valve, SOHC, 1-cyl
Release Date - March 2013
Country of Origin - JAPAN
ENGINE
Engine Description - 450
Engine Config - Vertical
Engine Capacity - 421 cc
Engine Type - Piston
Engine Stroke - 4
Bore - 84.5 mm
Stroke - 75.0 mm
Cam Type - SOHC (Single Over Head Cam)
Cylinders - 1
Valves Per Cylinder - 4
Compression Ratio - 10.0:1
Induction System - Aspirated
Carburettor(s) - 1
Carburettor - Mikuni BSR33/1; Semi-oval slide
Throttle Bore - 33mm
Cooling - Liquid
Lubrication - Wet Sump
Exhaust Description - Stainless steel muffler & header
START
Ignition - CDI (Capacitive Discharge Ignition)
Ignition Description - DC-CDI
Starter - Electric
ELECTRICS
Engine Voltage - 12 Volt
Charging Method - Engine
FUEL & EMISSIONS
Fuel Type - Petrol
Recommended RON - 95
Fuel Tank Capacity - 15.0 L
TRANSMISSION
Transmission Description - Ultramatic, High/Low/Neutral/Reverse/Park
Primary Drive - V-Belt
Drive Type - Shaft
Final Drive Ratio - Selectable 2WD/4WD; Diff locks; H/L/N/R/P
Driven Wheels - 2WD/4WD Selectable
Gear Type - CVT
Gear Number - 1
Reverse Gear - Standard
Clutch Type - Ultramatic
CHASSIS & SUSPENSION
Front Suspension - Independent double wishbone, 5 position preload adjustment shock absorbers
Front Suspension Travel - 160.0 mm
Rear Suspension - Independent double wishbone, 5 position preload adjustment
Rear Suspension Travel - 180.0 mm
BRAKES
Front Brake Description - Dual discs, Hydraulic operation
Rear Brake Description - Sealed oil-bathed multi disc
ABS - Not Available
Engine Braking System - Yes
WHEELS & TYRES
Wheel Size Front - 12"
Wheel Size Rear - 12"
Rear Tyre - 25 x 10-12" All Terrain
Front Tyre - 25 x 8-12" All Terrain
DIMENSIONS & WEIGHTS
Length - 1991 mm
Width - 1093 mm
Height - 1120 mm
Wheelbase - 1233 mm
Ground Clearance - 275.0 mm
Wet / Operational Weight - 281.00 kg
Seating Capacity - 1
